    Optizone Releases Optical Components and Modules for Optical Fiber Sensing

    Author:Optizone Technology (Shenzhen) Limited Click: Time:2023-04-28 11:00:00

    As a booming emerging industry, optical fiber sensing technology combines physical quantity sensing with signal transmission, and has a wide range of application requirements and market prospects in infrastructure, aerospace, medical health, intelligent manufacturing, Internet, national defense and military, etc. At the same time, it is also applied to scenes closely related to our daily life, such as in-vehicle radar, gas detection, wind and distance measurement, earthquake detection and other practical applications.


    According to Yole data, the global automotive and industrial radar market scale was valued at $2.1 billion in 2021 and is expected to increase to $6.3 billion by 2027. The market scale of the automotive ADAS field is expected to grow from $38 million in 2021 to $2 billion in 2027. It can be seen that the development prospect of the entire optical fiber sensing industry is particularly promising.


    Based on the field of optical communication and laser applications, Optizone provides standardized and customized optical fiber components and sensing system modules for optical fiber sensing.


    Applications: range finder, vehicle radar, fiber optic gyroscope, hydrophone, gas detection, etc.


    Optizone Optical Fiber Sensing Application Solution

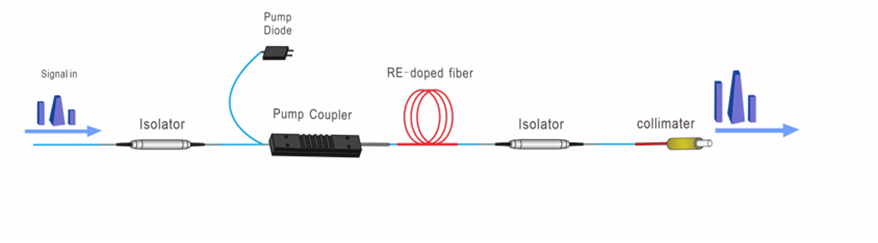

    (Vehicle radar laser system solution)


    In the practical application of optical fiber sensing, the environmental stability of the device plays an significant role in the stability, efficiency and cost control of the optical fiber sensing system. Optizone products for optical fiber sensing have the advantages of excellent environmental stability and strong weathering resistance, and can adapt to various harsh environments.


    Excellent environmental stability: Each product has passed the GR-1221-CORE standard test, and the test results are far better than the standard requirements. For example, for the insertion loss test of the polarization maintaining wavelength division multiplexer, the industry recommended standard is<0.5 dB in the 2000h damp heat test, while the change in insertion loss value of the optizone polarization maintaining wavelength division multiplexer before and after the 2500h damp heat test is less than 0.1dB, and the change of insertion loss before and after the dry test is<0.06dB, the change of the insertion loss of the low temperature test is less than 0.03dB. The change of the insertion loss value of the industry recommended standard 2000 cycles is 0.5dB, while the change of the insertion loss of Optizone products 4000 cycles is low to 0.12dB.


    Strong weathering resistance: Optizone products have a TDL<0.1~0.3dBunder the working temperature of -40°C to 125°C, and the key parameters change very little under the conditions of high temperature, high humidity and high pressure, and have strong weathering resistance.


    Optizone can customize a series of products according to different application requirements, such as polarization maintaining device series (band pass filter, isolator, wavelength division multiplexer, circulator, coupler, etc.), tapered fused fiber, beam collimator, optical fiber patchcord, isolator integrated components, wavelength division multiplexers, Faraday mirrors, optical switches, polarization beam combiners/splitters and other products and integrated components. Optizone can also provide sensing application modules for any integrated components.


    Typical Products


    Polarization Beam Combiner/Splitter

    Excellent Environmental Stability

    Low Insertion Loss (0.4dB)

    High Extinction Ratio (up to 30dB)


    Single Mode Isolator

    Excellent Environmental Stability

    Low Insertion Loss (0.25dB)

    High Isolation (up to 60dB)


    Polarization Maintaining Coupler

    Excellent Environmental Stability

    Compact Size Φ3.0x20mm

    Low Insertion Loss (0.1dB)


    Polarization Maintaining Wavelength Division Multiplexer

    Excellent Environmental Stability

    Low Insertion Loss (0.3dB)

    Customized Wavelength(405~2100nm)


    Polarization Maintaining Collimator

    Excellent Environmental Stability

    High Beam Quality (M²=1)

    Customized Wavelength (405~2100nm)


    Polarization Maintaining Circulator

    Excellent Environmental Stability

    Low Insertion Loss (0.4dB)

    Low Crosstalk (up to 65dB)


    In addition to the above-mentioned typical optical fiber sensing application products, Optizone can also customize various optical fiber sensing integrated and derivative products. According to the different needs of customers, Optizone has developed personalized and differentiated products and modules with high technical level.


    The optical fiber sensing application market is developing rapidly. Based on 16 years of in-depth experience in optical passive components, Optizone can quickly respond to market demand with its technical advantages. In the future, Optizone will continue to deepen the field of optical fiber sensing applications, continue to develop and innovate, continue to increase R&D investment, keep up with the development trend of the optical fiber sensing market, and provide one-stop, integrated sensor components and modules for practical application scenarios.
